Mid Inside Antenna Removal and Installation: Removal

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect negative (-) cable at battery.
  2. Remove center console box, see CENTER CONSOLE BOX REMOVAL AND INSTALLATION .
  3. Disconnect connector (1), and then remove mid inside antenna (2).

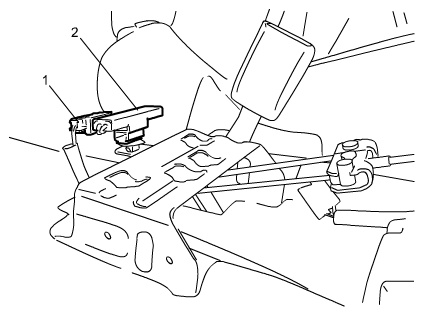

    Fig 1: Identifying Mid Inside Antenna And Connector
    G06527959Courtesy of SUZUKI OF AMERICA CORP.
