Forward-Impact Sensor Removal and Installation: Installation

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.

Reference: FORWARD-IMPACT SENSOR INSPECTION

  1. Check that none of the following faulty conditions exists.
    • Bend, deformation or rust on apron side member outer panel.
    • Foreign material on sensor.
    • Direct arrow (1) on forward-impact sensor frontward.
      Fig 1: Identifying Arrow On Forward-Impact Sensor
      G06526993
  2. Align mounting pin (1) to mounting hole (2) of vehicle to install forward-impact sensor (3).
  3. Tighten forward-impact sensor bolt to specified torque.

    Tightening torque

    Forward impact-sensor bolt (a): 9 N.m (0.9 kg-m, 6.5 lbf-ft)

  4. Connect forward-impact sensor connector securely.

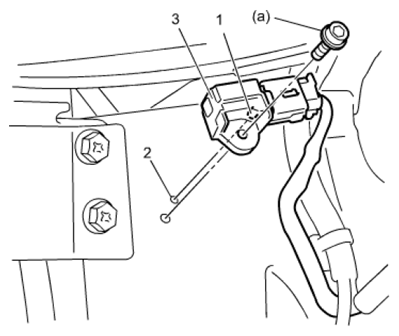

    Fig 2: Identifying Forward-Impact Sensor And Forward Impact-Sensor Bolt
    G06526994
  5. Install front bumper.
  6. Enable air bag system.
