Sedan Model

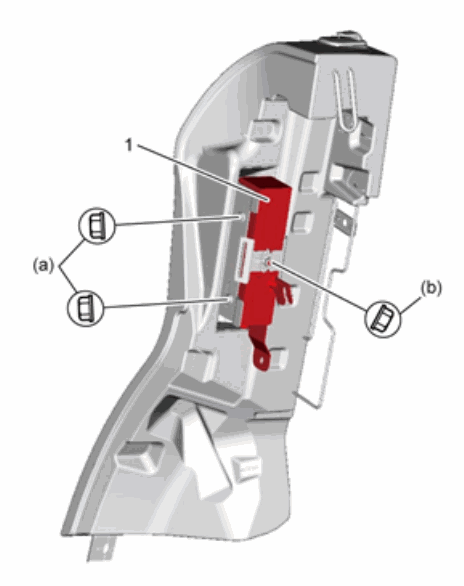

Install rear side-air bag (1) at specified torque as shown.
Tightening torque

Rear side-air bag nut (a): 12 N.m (1.2 kgf-m, 9.0 lbf-ft)

Rear side-air bag nut (b): 5.5 N.m (0.56 kgf-m, 4.0 lbf-ft)

Fig 1: Identifying Rear Side-Air Bag & Bolts
Courtesy of SUZUKI OF AMERICA CORP.

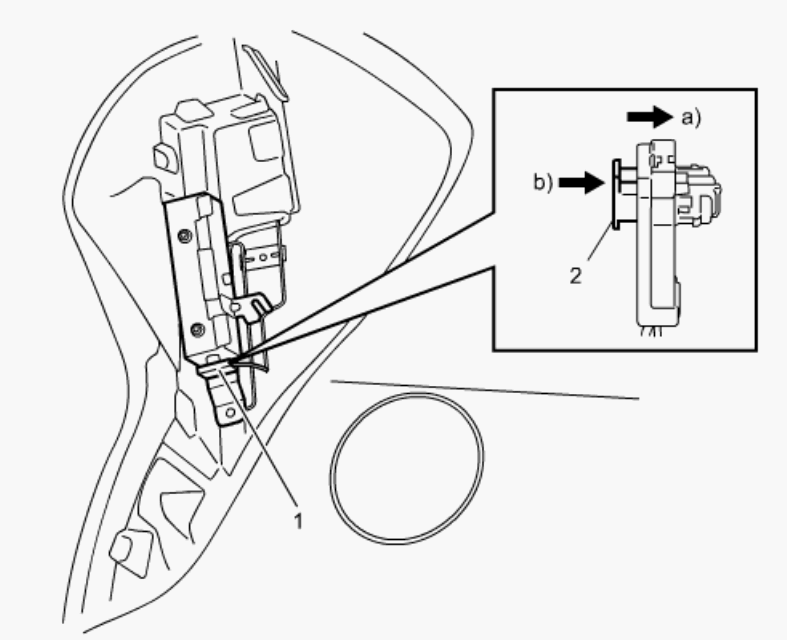

Connect rear side-air bag connector (1) as shown in figure.
1. Connect connector.
2. Lock connector with lock button (2).

  Fig 2: Locking & Connecting Connector
  Courtesy of SUZUKI OF AMERICA CORP.
Install rear seat side back. Refer to REAR SEAT REMOVAL AND INSTALLATION .
Enable air bag system. Refer to Enabling Air Bag System :Advanced Air Bag.
