Enabling Air Bag System

  1. Confirm that battery negative (-) cable is disconnected.
  2. Turn ignition switch to "LOCK" position and remove key.
  3. Connect yellow connector (1) of driver air bag (inflator) module by pushing connector till click is heard from it.

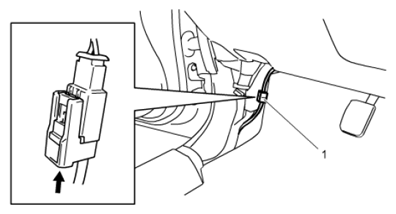

    Fig 1: Identifying Yellow Connector Of Driver Air Bag (Inflator) Module
    G06868000Courtesy of SUZUKI OF AMERICA CORP.
  4. Connect yellow connector (1) of passenger air bag (inflator) module by pushing connector till click is heard from it.

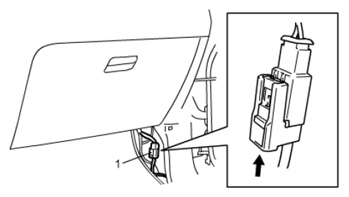

    Fig 2: Identifying Yellow Connector Of Passenger Air Bag (Inflator) Module
    G06868001Courtesy of SUZUKI OF AMERICA CORP.
  5. Install driver and passenger side front pillar lower trim.
  6. Connect yellow connector (1) of side-air bag (inflator) module by pushing connector till click is heard from it.
    Fig 3: Identifying Yellow Connector Of Side-Air Bag (Inflator)
    G06868002Courtesy of SUZUKI OF AMERICA CORP.
  7. Connect connector of rear side-air bag (inflator) module as follows.

    For hatchback model:

    1. Install rear side-air bag. See Rear Side-Air Bag (Inflator) Module Removal and Installation .

    For sedan model:

    1. Connect black connector (1).
    2. Lock connector with lock button (2).

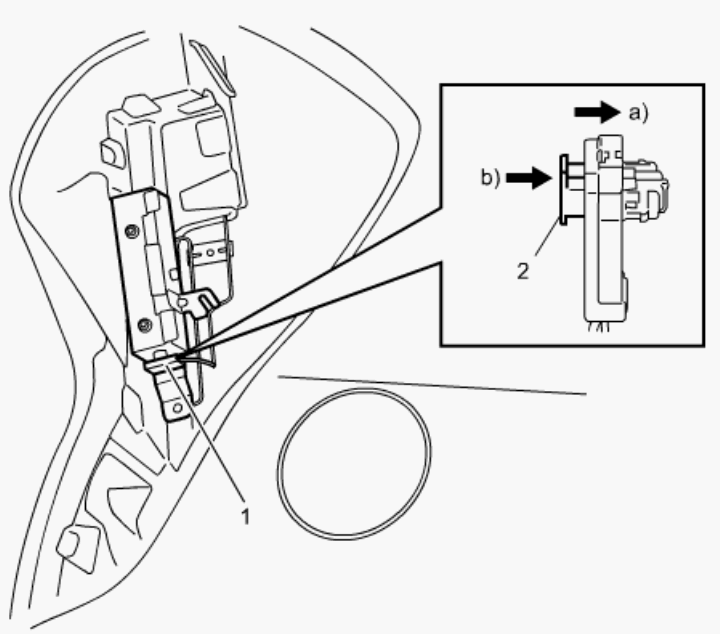

      Fig 4: Connecting & Locking Connector
      G00520621Courtesy of SUZUKI OF AMERICA CORP.
    3. Install rear seat side back. See REAR SEAT REMOVAL AND INSTALLATION .

  8. Connect connector of side curtain-air bag (inflator) module and then install each trim as follows.

    For hatchback model:

    1. Connect yellow connector (1) by pushing connector till click is heard from it.

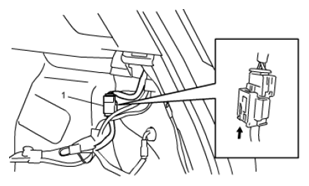

      Fig 5: Identifying Yellow Connector
      G06868003Courtesy of SUZUKI OF AMERICA CORP.
    2. Install right-side rear quarter lower trim.

    For sedan model:

    1. Connect black connector (1).
    2. Lock connector with lock button (2).
    3. Install rear pillar inner trim.

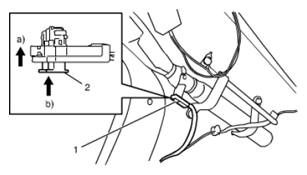

      Fig 6: Identifying Black Connector
      G06868004Courtesy of SUZUKI OF AMERICA CORP.
    4. Install seat cushion and seat back referring to REAR SEAT COMPONENTS
  9. Install "A/B" fuse to fuse box.
  10. Connect negative (-) cable at battery.
  11. Turn ignition switch to ON position and verify that "AIR BAG" warning light flashes 6 times and then turns OFF. If it does not operate as described, perform AIR BAG DIAGNOSTIC SYSTEM CHECK: ADVANCED AIR BAG .
