Hatchback Model

Connect rear side-air bag connector (1) as shown in figure.
1. Connect connector.
2. Lock connector with lock button (2).

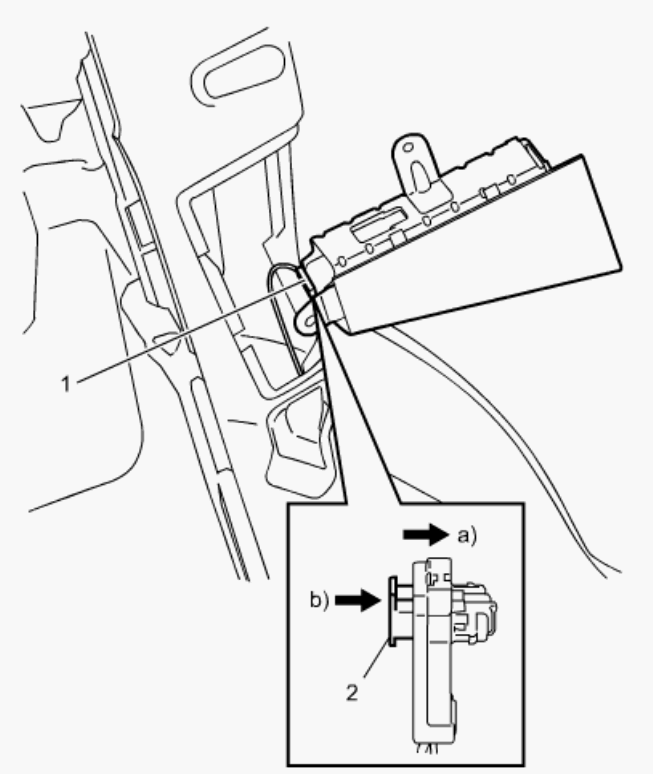

Fig 1: Connecting & Locking Connector
Courtesy of SUZUKI OF AMERICA CORP.
Install rear side-air bag (1) at specified torque as shown.
Tightening torque

Rear side-air bag bolt (a): 10 N.m (1.0 kgf-m, 7.5 lbf-ft)

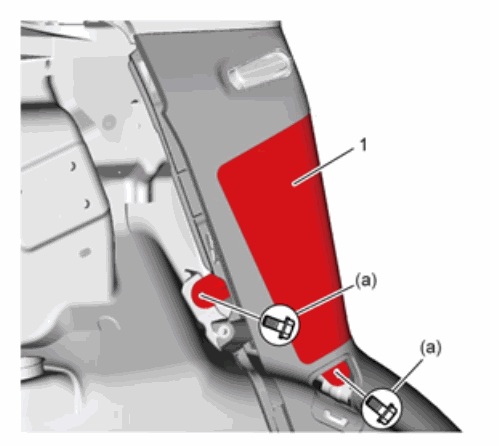

Fig 2: Identifying Rear Side-Air Bag & Bolts
Courtesy of SUZUKI OF AMERICA CORP.
Install quarter inner lower front cap.
Install quarter lower rear trim. Refer to FLOOR CARPET REMOVAL AND INSTALLATION .
Install rear seat back. Refer to REAR SEAT REMOVAL AND INSTALLATION .
Enable air bag system. Refer to Enabling Air Bag System :Advanced Air Bag.
