Air Intake Control Actuator Removal and Installation: Installation
WARNING: This page is about a different car, the 2011 Suzuki SX4. However, it is still accessible from the selected car via links, so may be relevant.
Reference: AIR INTAKE CONTROL ACTUATOR INSPECTION
Reverse removal procedure noting the following instruction.

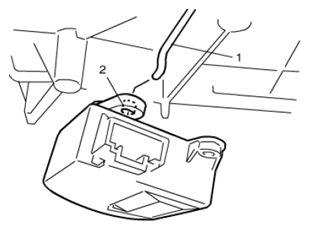

- Be sure to insert the linkage rod (1) into the hole (2) of air intake control actuator.
