Air Intake Control Actuator Inspection

WARNING: This page is about a different car, the 2011 Suzuki SX4. However, it is still accessible from the selected car via links, so may be relevant.

Reference: AIR INTAKE CONTROL ACTUATOR REMOVAL AND INSTALLATION

Check air intake control actuator as follows:

Using service wire, connect battery positive terminal to "d" terminal and battery negative terminal to terminal "a". And, check if air intake selector link operates smoothly and it stops at "FRE" position (1).
Using service wire, connect battery positive terminal to "d" terminal and battery negative terminal to terminal "c". And, check if air intake selector link operates smoothly and it stops at "REC" position (2).
For auto A/C model, using service wire, connect battery positive terminal to "d" terminal and battery negative terminal to "b" terminal. And, check air intake selector link operates smoothly and it stops at MIX position (3).
If malfunction is found, replace air intake control actuator.

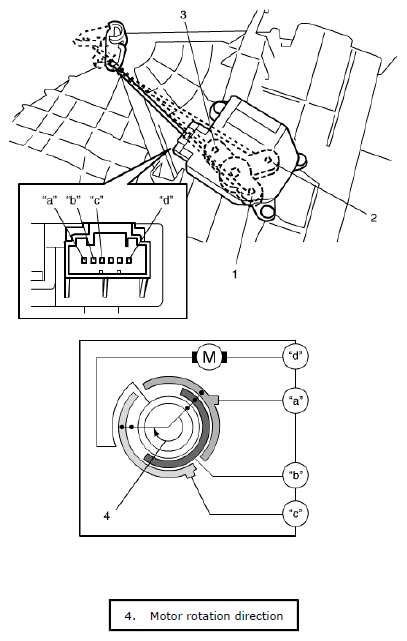

Fig 1: Inspecting Air Intake Control Actuator
Courtesy of SUZUKI OF AMERICA CORP.
