Cowl Moulding / Trim: Service and Repair

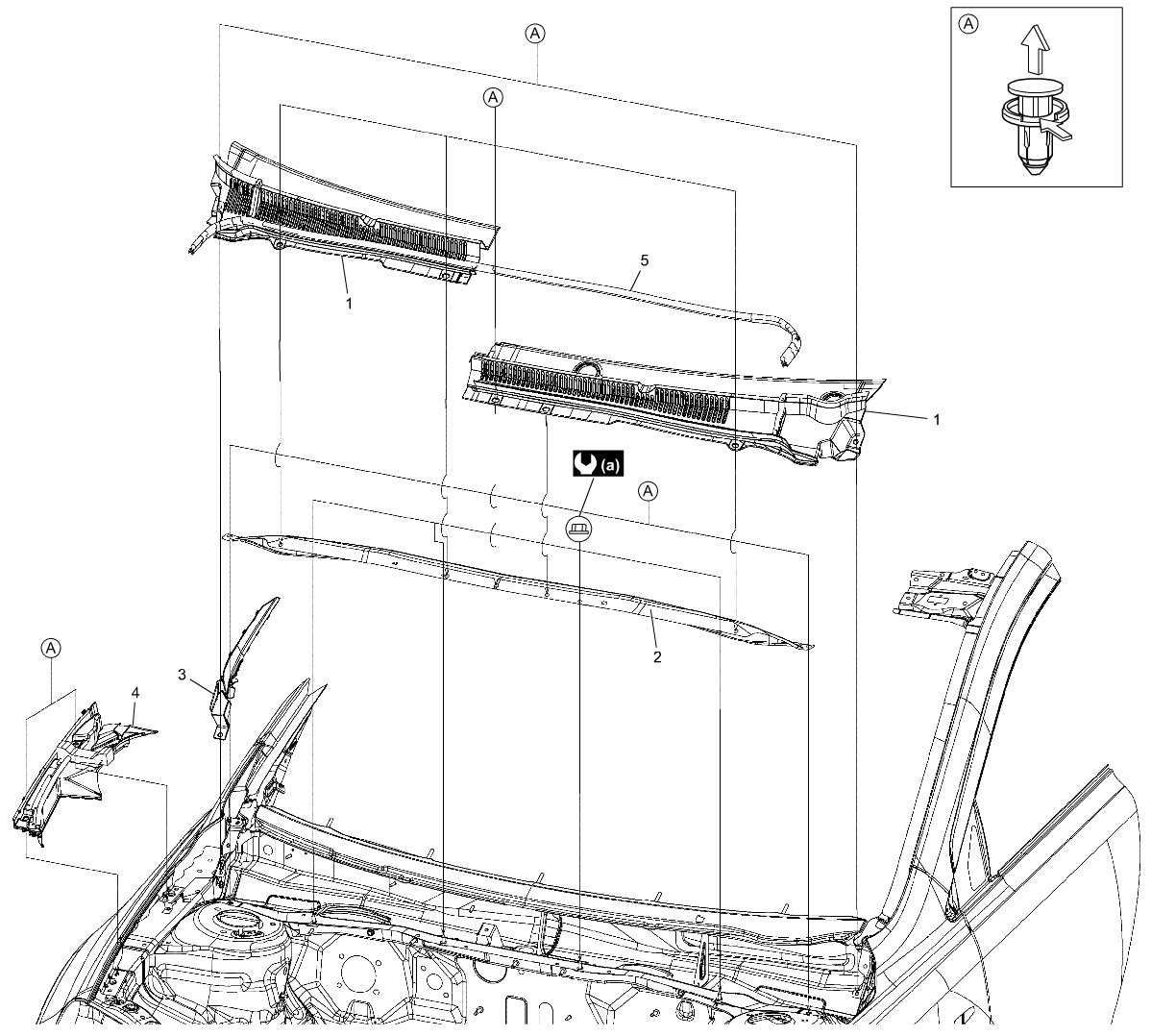

Front Fender Cover / Cowl Top Garnish Removal and Installation

Removal

1) Remove hood rear No. 1 seal (5).
2) Remove wiper arms. Wiper Motor Removal and Installation
3) Remove clips and remove front fender front cover (4).
4) Remove clips and remove cowl top garnishes (1).
5) Remove nuts and remove cowl front panel (2).











Installation

Reverse removal procedure.
