Steering Column Assembly Removal and Installation: Installation

Reference: CHECKING STEERING COLUMN FOR ACCIDENT DAMAGE

NOTE: Tightening the fasteners in the wrong order may cause damage to the shaft joint. Be sure to tighten the steering column assembly mounting nuts in the order given before tightening the steering lower shaft assembly upper joint bolt.
  1. Be sure that front wheels and steering wheel are in straight-ahead position.
  2. Align flat part "A" of steering upper shaft upper joint (1) with bolt hole "B" of steering column assembly (2) as shown in the figure. Then connect steering upper shaft upper joint.

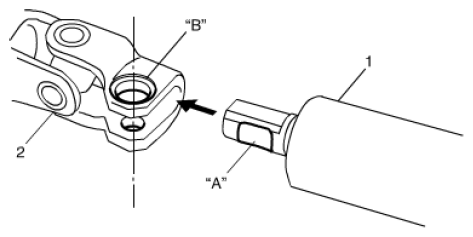

    Fig 1: Aligning Steering Upper Shaft Upper Joint With Bolt Hole Of Steering Column Assembly
    G08899280Courtesy of SUZUKI OF AMERICA CORP.
  3. Install steering column assembly (1) with contacting upper side of lower bracket slits to mounting bolts. Tighten steering column lower mounting nuts (3) first and then upper mounting bolts (2) to specified torque.

    Tightening torque

    Steering column assembly mounting bolt and nut (a): 25 N.m (2.5 kgf-m, 18.0 lbf-ft)

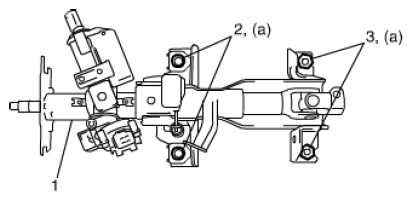

    Fig 2: Steering Column Assembly, Mounting Bolts And Nuts With Torque Specifications
    G08899281Courtesy of SUZUKI OF AMERICA CORP.
  4. Install column support bracket. (if equipped)
  5. Install new steering upper shaft upper joint bolt (2) and nut (1). Tighten new steering upper shaft upper joint nut (1) to specified torque.
    NOTE: The steering upper shaft upper joint bolt is fastened with a self-locking nut and will work loose if they are reused.
    Be sure to replace the bolt and nut with new ones.

    Tightening torque

    Steering upper shaft assembly upper joint nut (a): 23 N.m (2.3 kgf-m, 17.0 lbf-ft)

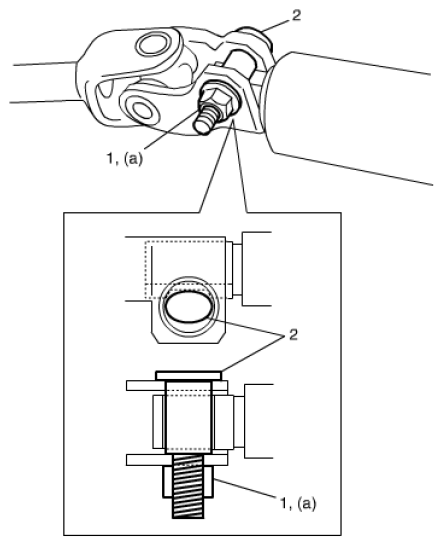

    Fig 3: Steering Upper Shaft Upper Joint Bolt And Nut With Torque Specifications
    G08899282Courtesy of SUZUKI OF AMERICA CORP.
  6. For A/T vehicle, connect shift (key) interlock cable (1) to ignition switch with ignition switch turned at ACC position.

    And then turn ignition switch LOCK position.

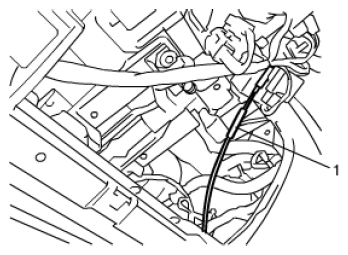

    Fig 4: Identifying Shift Interlock Cable
    G08899283Courtesy of SUZUKI OF AMERICA CORP.
  7. Connect steering lock assembly connector.
  8. Install washer switch referring to WINDSHIELD WIPER AND WASHER SWITCH REMOVAL AND INSTALLATION .
  9. Install lighting switch referring to HEADLIGHT SWITCH (IN LIGHTING SWITCH) REMOVAL AND INSTALLATION .
  10. Install immobilizer control module (ICM) referring to IMMOBILIZER CONTROL MODULE (ICM) REMOVAL AND INSTALLATION .
  11. Install instrument panel under cover (1) to instrument panel.

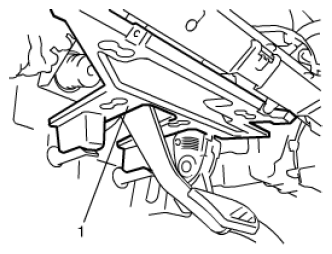

    Fig 5: Identifying Instrument Panel Under Cover
    G08899284Courtesy of SUZUKI OF AMERICA CORP.
  12. Install steering wheel and contact coil cable assembly by referring to STEERING WHEEL REMOVAL AND INSTALLATION  and CONTACT COIL CABLE ASSEMBLY REMOVAL AND INSTALLATION .
  13. Connect negative (-) cable to battery.
  14. After installing steering column assembly, be sure to enable air bag system by referring to ENABLING AIR BAG SYSTEM:Advanced Air Bag  or ENABLING AIR BAG SYSTEM:Except Advanced Air Bag  .
