Enabling Air Bag System

Confirm that battery negative (-) cable is disconnected.
Turn ignition switch to "LOCK" position and remove key.

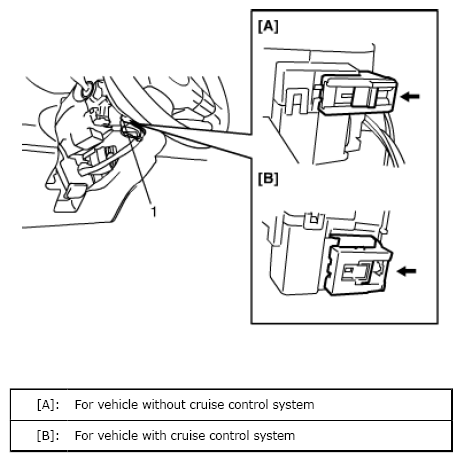

Connect yellow connector (1) of contact coil and combination switch assembly by pushing connector till click is heard from it.

Fig 1: Connecting Yellow Connector Of Contact Coil And Combination Switch Assembly
Courtesy of SUZUKI OF AMERICA CORP.

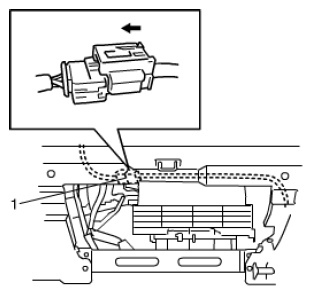

Connect yellow connector (1) of passenger air bag (inflator) module by pushing connector till click is heard from it.

Fig 2: Connecting Yellow Connector Of Passenger Air Bag (Inflator) Module
Courtesy of SUZUKI OF AMERICA CORP.
Install glove box.

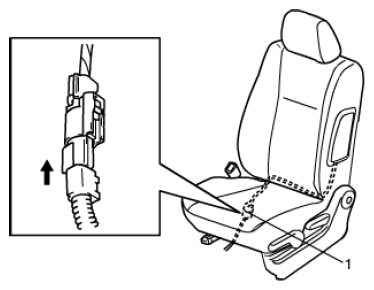

If equipped with side-air bag (inflator) module, connect yellow connector (1) of side-air bag (inflator) module by pushing connector till click is heard from it.

Fig 3: Connecting Yellow Connector Of Side-Air Bag (Inflator) Module
Courtesy of SUZUKI OF AMERICA CORP.

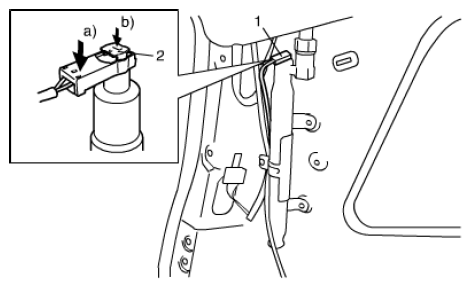

If equipped with side curtain-air bag (inflator) module, connect black connector (1) securely as shown in the figure.
1. Connect connector.
2. Lock connector with lock button (2).

  Fig 4: Connecting Black Connector To Side Curtain-Air Bag (Inflator) Module
  Courtesy of SUZUKI OF AMERICA CORP.
Install "A/B" fuse to fuse box.
Connect negative (-) cable at battery.
Turn ignition switch to ON position and verify that "AIR BAG" warning light flashes 6 times and then turns OFF. If it does not operate as described, perform AIR BAG DIAGNOSTIC SYSTEM CHECK .
