Contact Coil Cable Assembly Removal and Installation: Installation

Reference: CONTACT COIL CABLE ASSEMBLY INSPECTION

Reference: CENTERING CONTACT COIL CABLE ASSEMBLY

1. Check to make sure that vehicle's front tires are set at straight-ahead position and then ignition switch is at "LOCK" position.
2. (ESP® model)

   Install steering angle sensor to contact coil cable assembly refer to STEERING ANGLE SENSOR REMOVAL AND INSTALLATION .

3. Install contact coil cable assembly to steering column nothing the following.
   • Fit lower fitting part first and then fit upper fitting part.
     NOTE: New contact coil cable assembly is supplied with contact coil set and held at its neutral position with a lock pin (1). Remove this lock pin after installing contact coil cable assembly to steering column.
     Fig 1: Holding Contact Coil Cable Assembly At Neutral Position Using Lock Pin

     Courtesy of SUZUKI OF AMERICA CORP.
4. Connect all connectors that have been removed in "Removal".
5. Install steering column upper cover (2) and lower cover (3), and then tighten steering column cover screws (1).
   NOTE: Lead wires will be damaged if they get pinched when you install the covers.
   Make sure that there are no wires caught between the covers before securing the covers.

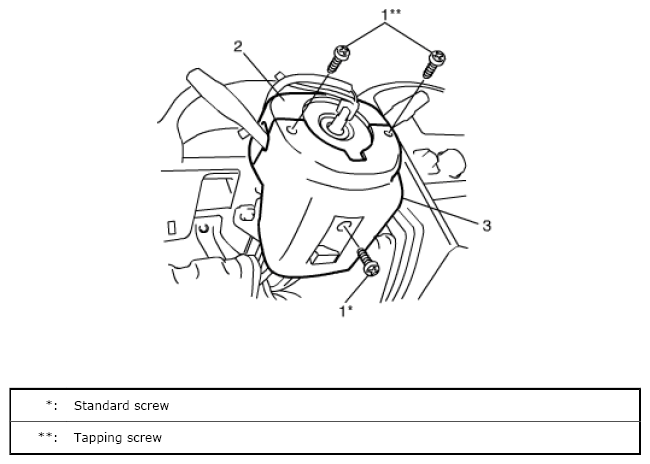

   Fig 2: Identifying Steering Column Upper And Lower Cover With Mounting Screws

   Courtesy of SUZUKI OF AMERICA CORP.
6. Install steering column hole cover (1).

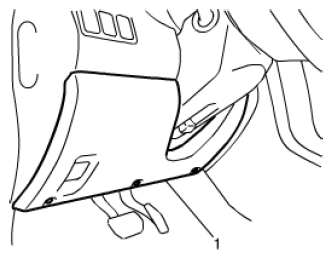

   Fig 3: Identifying Steering Column Hole Cover

   Courtesy of SUZUKI OF AMERICA CORP.
7. Install steering wheel to steering column. Refer to STEERING WHEEL REMOVAL AND INSTALLATION .
