Centering Contact Coil Cable Assembly

Reference: STEERING WHEEL REMOVAL AND INSTALLATION

1. Check that vehicle's wheels (front tires) are set at straight-ahead position.
2. Check that ignition switch is at LOCK position.
3. Turn contact coil cable assembly (2) counterclockwise slowly with a light force till contact coil cable assembly will not turn any further.
   NOTE: Contact coil cable assembly can turn about 5 turns at maximum, that is, if it is at the neutral position, can turn about two-and-a-half turns both clockwise and counterclockwise.
4. From the position where contact coil cable assembly (2) became unable to turn any further (it stopped), turn it back clockwise about two-and-a-half rotations and align center mark with alignment mark (1).

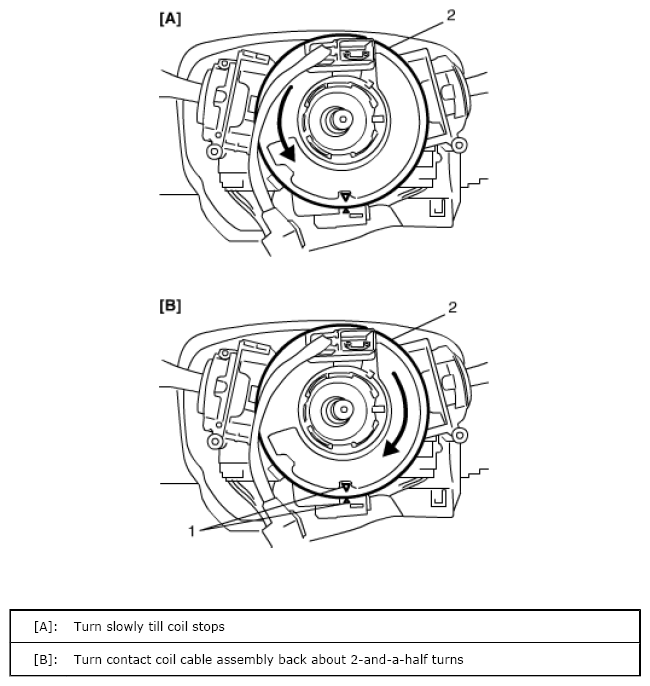

   Fig 1: Aligning Center Mark Of Contact Coil Cable Assembly With Alignment Mark

   Courtesy of SUZUKI OF AMERICA CORP.
