Side-Sensor Removal and Installation: Installation

Reference: SIDE-SENSOR INSPECTION

1. Check that none of following faulty conditions exists.
   • Bend, deformity or rust of under body.
   • Foreign matter on mating surface of sensor.
2. Install side-sensor (1) on under body (2) and tighten side-sensor bolt (3) to specified torque.

   Tightening torque

   Side-sensor bolt (a): 11 N.m (1.1 kgf-m, 8.0 lbf-ft)

   Fig 1: Identifying Side-Sensor, Under Body And Bolt

   Courtesy of SUZUKI OF AMERICA CORP.
3. Connect side-sensor connector pushing connector inner (1) as shown.

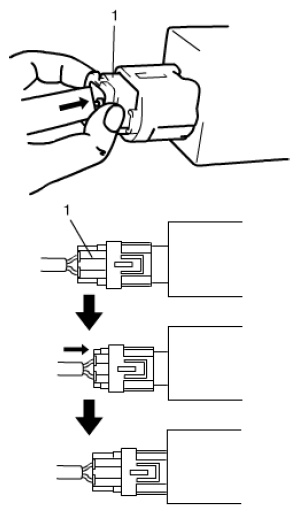

   Fig 2: Pushing Side-Sensor Connector Inner

   Courtesy of SUZUKI OF AMERICA CORP.
4. Connect negative (-) cable at battery.
5. Enable air bag system. Refer to ENABLING AIR BAG SYSTEM  .
