Clutch Piping: Removal and Installation

Carefully observe the following during clutch tube removal and installation.

CAUTION: Do not spill brake fluid onto painted surfaces. If it spills, wipe up immediately and wash the affected area with water.

NOTE: When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spilling.

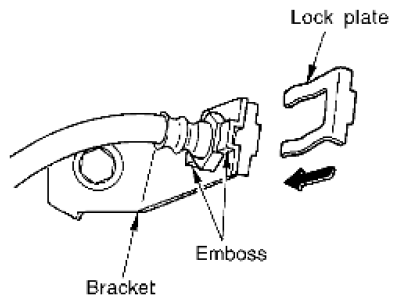

When installing the clutch hose to the bracket, align the clutch hose metal fittings with the bracket positioning emboss, then install the lock plate to secure.

Fig 1: Installing Lock Plate
Courtesy of SUZUKI OF AMERICA CORP.
CAUTION:
- Do not damage the clutch hose.
- Make sure the clutch hose is not bent or twisted.
Tighten the clutch tube and hose fittings to the specified torque.
CAUTION:
- Do not reuse the copper washer.
- Do not damage the clutch tube fittings or clutch tube.
After installation, bleed the air from the clutch hydraulic system. Refer to [CLUTCH FLUID: BLEEDING ].
