Clutch Fluid: Bleeding
WARNING:
Brake and clutch fluid is poison and should be stored carefully in marked containers out of the reach of children.
CAUTION:
- Use only new fluid from a sealed container.
- Clean the filler cap before removing (if applicable).
- Do not spill clutch fluid onto painted surfaces. If it spills, wipe up immediately and wash the affected area with water.
NOTE:
Monitor the fluid level in the reservoir tank to make sure it does not empty.
- Top off reservoir with new recommended brake fluid. Refer to [RECOMMENDED FLUIDS AND LUBRICANTS ]

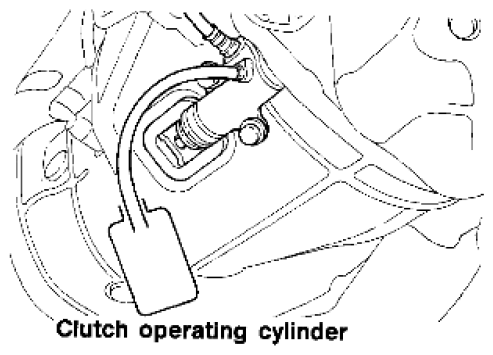

- Connect a transparent vinyl tube and container to the air bleeder valve on the clutch operating cylinder.
- Fully depress the clutch pedal several times.
- With the clutch pedal depressed, open the bleeder valve to release the air.
- Close the bleeder valve.
- Repeat steps 3 to 5 until clear brake fluid comes out of the air bleeder valve.
- Tighten the air bleeder to the specified torque.
Air bleeder 7.9 N.m (0.81 kg-m, 70 in-lb)
