Electronic Traction Control Switch Replacement

WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

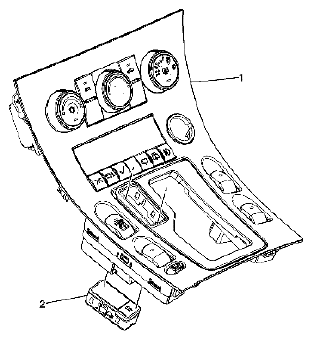

Fig 1: Identifying Electronic Traction Control Switch

Courtesy of SUZUKI OF AMERICA CORP.

PRELIMINARY PROCEDURE

Callout	Component Name
Preliminary Procedure Remove the Instrument Panel Lower Brace Bezel. Refer to INSTRUMENT PANEL LOWER BRACE BEZEL REPLACEMENT .
1	Traction Control Switch Assembly Tip: Release the tabs securing the traction control switch to the trim plate and remove the switch from the plate.
