Instrument Panel Lower Brace Bezel Replacement

WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

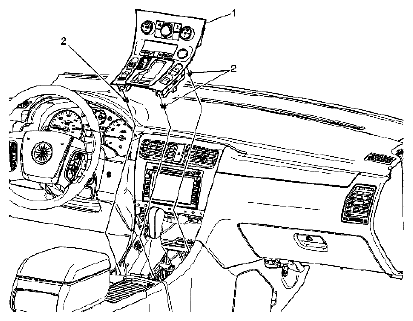

Fig 1: Identifying Instrument Panel Lower Brace Bezel Assembly & Retainer Clips

Courtesy of SUZUKI OF AMERICA CORP.

INSTRUMENT PANEL REFERENCE TABLE

Callout	Component Name
Preliminary Procedures Engage the Parking Brake. Place the shifter in the neutral position. Remove the Shifter Knob. Refer to TRANSMISSION CONTROL LEVER KNOB REPLACEMENT .
1	Instrument Panel Lower Brace Bezel Assembly Use a flat bladed plastic trim tool in order to release the bezel from the I/P. Disconnect the electrical connections. When replacing the lower I/P brace bezel, transfer all necessary components.
2	Retainer Clips (Qty 4)
