Instrument Panel Upper Trim Panel Replacement

WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

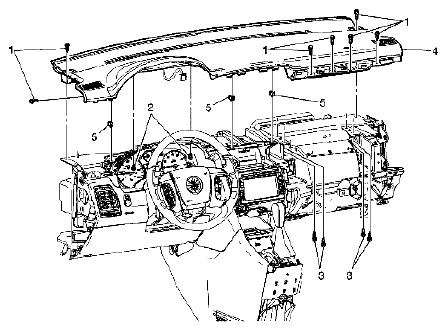

Fig 1: Identifying Instrument Panel Upper Trim Panel Components

Courtesy of SUZUKI OF AMERICA CORP.

INSTRUMENT PANEL UPPER TRIM PANEL TABLE

Callout	Component Name
Preliminary Procedures Disable the SIR System. Refer to SIR DISABLING AND ENABLING . Remove the right and left windshield garnish moldings. Refer to WINDSHIELD UPPER GARNISH MOLDING REPLACEMENT . Remove the Right and Left Instrument Panel Outer Trim Covers. Refer to INSTRUMENT PANEL OUTER TRIM COVER REPLACEMENT . Remove the Right Instrument Panel Lower Trim Panel. Refer to INSTRUMENT PANEL LOWER TRIM PANEL REPLACEMENT - RIGHT SIDE .
1	Instrument Panel Upper Trim Panel Bolts (Qty 7) CAUTION: Refer to FASTENER NOTICE . Tightening torque 3 N.m (27 lb in) Procedure Remove 2 plastic covers in order to access the upper bolts.
2	Cluster Trim Bezel to Instrument Panel Upper Trim Panel Screws (Qty 2) Tightening torque 2 N.m (18 lb in)
3	Instrument Panel Inflatable Restraint Module Bolts (Qty: 4) Tightening torque 9 N.m (80 lb in)
4	Instrument Panel Upper Trim Panel Assembly Procedures Disconnect the electrical connections. When replacing the upper trim panel, transfer all necessary components.
5	Retainer Clips (Qty 3)
