Instrument Panel Lower Trim Panel Replacement - Right Side

WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

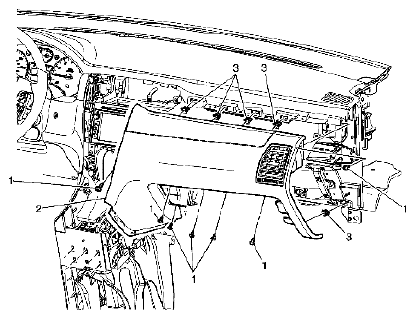

Fig 1: Instrument Panel Lower Trim Panel Assembly, Screws & Retainer Clips

Courtesy of SUZUKI OF AMERICA CORP.

INSTRUMENT PANEL LOWER TRIM PANEL TABLE

Callout	Component Name
Preliminary Procedures Remove the Right Instrument Panel Outer Trim Cover. Refer to INSTRUMENT PANEL OUTER TRIM COVER REPLACEMENT . Remove the Right Console Trim Panel. Refer to FRONT FLOOR CONSOLE SIDE TRIM PANEL REPLACEMENT - RIGHT SIDE . Remove the Instrument Panel Accessory Trim Plate. Refer to INSTRUMENT PANEL ACCESSORY TRIM PLATE REPLACEMENT . Remove the Instrument Panel Compartment Assembly. Refer to INSTRUMENT PANEL COMPARTMENT REPLACEMENT .
1	Instrument Panel Lower Trim Panel Screws (Qty 6) CAUTION: Refer to FASTENER NOTICE . Tightening torque 2 N.m (18 lb in)
2	Instrument Panel Lower Trim Panel Assembly
3	Retainer Clips (Qty 5)
