Instrument Panel Accessory Trim Plate Replacement

WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

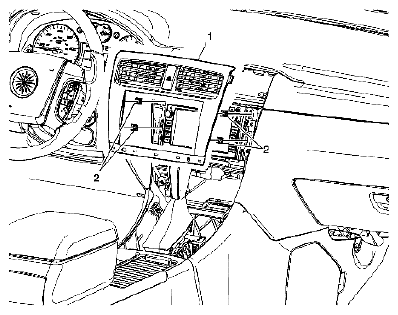

Fig 1: Identifying Instrument Panel Accessory Trim Plate Assembly & Retainer Clips
G04845164Courtesy of SUZUKI OF AMERICA CORP.
INSTRUMENT PANEL REFERENCE TABLE

Callout Component Name
Preliminary Procedure
Remove the Instrument Panel Lower Brace Bezel. Refer to INSTRUMENT PANEL LOWER BRACE BEZEL REPLACEMENT .
1 Instrument Panel Accessory Trim Plate Assembly.
  1. Use a flat bladed plastic trim tool in order to remove the accessory trim plate from the I/P.
  2. Disconnect the electrical connectors.
  3. When replacing the trim plate, transfer all necessary components.
2 Retainer Clips (Qty 4)
