Instrument Panel Cluster Trim Plate Bezel Replacement

WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

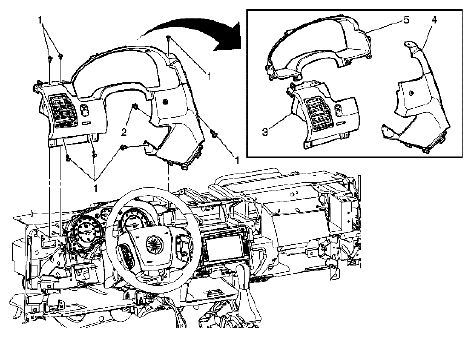

Fig 1: Identifying Instrument Panel Left Lower Trim Panel, Center Lower Trim Panel & Panel Cluster Bezel Assembly

Courtesy of SUZUKI OF AMERICA CORP.

INSTRUMENT PANEL CLUSTER TRIM PLATE BEZEL REFERENCE TABLE

Callout	Component Name
Preliminary Procedures Remove the Knee Bolster Assembly. Refer to KNEE BOLSTER REPLACEMENT . Remove the Instrument Panel Upper Trim Panel. Refer to INSTRUMENT PANEL UPPER TRIM PANEL REPLACEMENT . Remove the left Console Trim Panel. Refer to FRONT FLOOR CONSOLE SIDE TRIM PANEL REPLACEMENT - LEFT SIDE .
1	Lower Instrument Panel Trim Panel Assembly Screws (Qty 7) CAUTION: Refer to FASTENER NOTICE . Tightening torque 2 N.m (18 lb in) Procedure Disconnect the electrical connections. Tip: The left lower trim panel, center lower trim panel, and the cluster trim bezel are removed as an assembly.
2	Retainer Clips (Qty 2)
3	Instrument Panel Left Lower Trim Panel Assembly Refer to INSTRUMENT PANEL LOWER TRIM PANEL REPLACEMENT - LEFT SIDE .
4	Instrument Panel Center Lower Trim Panel Assembly Refer to INSTRUMENT PANEL LOWER CENTER TRIM PANEL REPLACEMENT .
5	Instrument Panel Cluster Bezel Assembly
