Rear Bumper Fascia Reflector Replacement
WARNING: This page is about a different car, the 2008 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

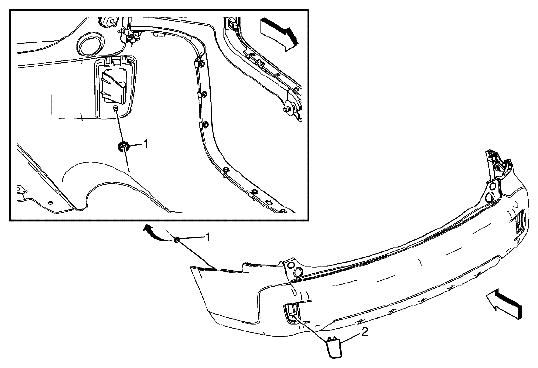

COMPONENT SPECIFICATION
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the rear bumper lower fascia. Refer to REAR BUMPER LOWER FASCIA REPLACEMENT . |
|
| 1 | Rear Bumper Fascia Reflector Nut
CAUTION:
Refer to FASTENER NOTICE
. Tightening torque 6 N.m (53 lb in) |
| 2 | Rear Bumper Fascia Reflector |
