Rear Bumper Lower Fascia Replacement

WARNING: This page is about a different car, the 2008 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

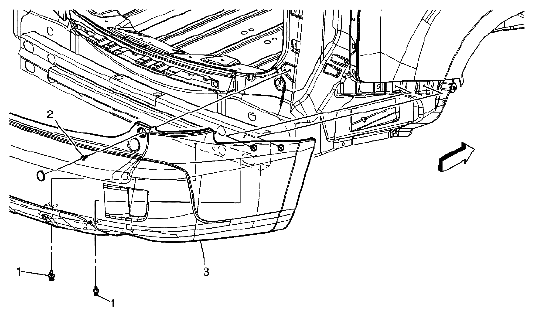

Fig 1: Identifying Rear Bumper Lower Fascia Bolt And Rear Bumper Lower Fascia

Courtesy of SUZUKI OF AMERICA CORP.

COMPONENT SPECIFICATION

Callout	Component Name
Preliminary Procedure Remove the plastic retainers and the bolts securing the rear wheelhouse liner panels to the fascia assembly. Refer to REAR WHEELHOUSE PANEL LINER REPLACEMENT .
1	Rear Bumper Lower Fascia Plastic Retainer (Qty: 4)
2	Rear Bumper Lower Fascia Bolt (Qty: 2) CAUTION: Refer to FASTENER NOTICE . Tip: Remove the plastic covers to access the bolts. Tightening torque 6 N.m (53 lb in)
3	Rear Bumper Lower Fascia Each side of the rear bumper upper fascia is secured to the quarter panel with two plastic retainers and an integral clip. For an image of these pieces refer to REAR BUMPER BRACKET REPLACEMENT . Do not jerk on the rear fascia to remove or you may break the retainers on the rear fascia brackets.
