Transmission Mount Bracket Replacement - Left Side

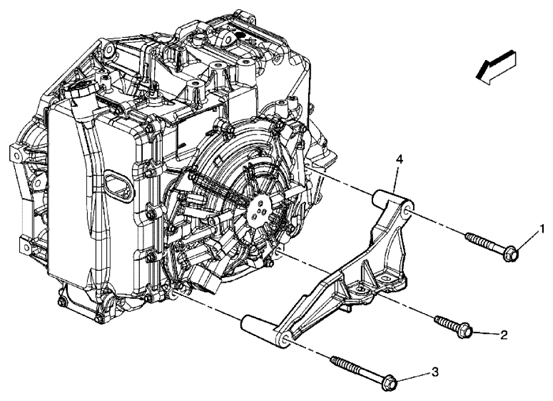

Fig 1: Identifying Transmission Mount Bracket - Left Side

Courtesy of SUZUKI OF AMERICA CORP.

COMPONENT NAME REFERENCE

Callout	Component Name
Preliminary Procedures  Remove the left transmission mount. Refer to TRANSMISSION MOUNT REPLACEMENT - LEFT SIDE .
1	Transmission Mount Bracket Bolt CAUTION: Refer to FASTENER NOTICE . Tightening torque  110 N.m (81 lb ft)
2	Transmission Mount Bracket Bolt Tightening torque  110 N.m (81 lb ft)
3	Transmission Mount Bracket Bolt Tightening torque  110 N.m (81 lb ft)
4	Transmission Mount Bracket
