Torque Converter Installation

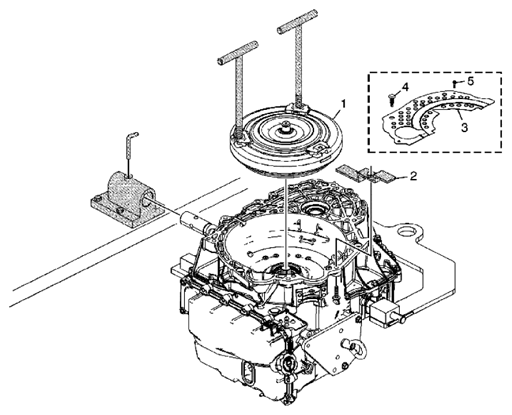

COMPONENT NAME REFERENCE
| Callout | Component Name |
|---|---|
| 1 | Torque Converter Assembly
CAUTION:
Lower the torque converter straight down. Failure to lower the torque converter straight down could damage the torque converter clutch lip seal inside the torque converter clutch assembly. Special Tools J 46409 Torque Converter Lifting Handles For equivalent regional tools, refer to SPECIAL TOOLS - AUTOMATIC TRANSMISSION - 6T70/6T75 . |
| 2 | J 21366 Converter Holding Strap
WARNING:
The torque converter must be held to the torque converter housing by a retaining device such as shipping brackets. Without the retaining device, the torque converter may slide forward, disengaging the oil pump, or may fall completely out of the transmission causing personal injury and/or property damage.
|
| 3 | Dust Cover - Model Dependent |
| 4 | Dust Cover Push Pin - Model Dependent (Qty: 2) |
| 5 | Dust Cover Bolt - Model Dependent
CAUTION:
Refer to FASTENER NOTICE
. Tightening torque 75 N.m (37 lb ft) |
Reference: LIFT PLATE AND HOLDING FIXTURE REMOVAL
