Lift Plate and Holding Fixture Removal

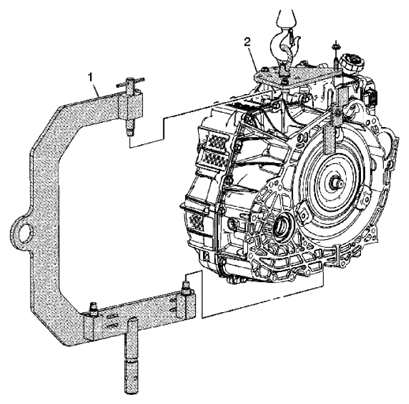

Fig 1: Identifying Lift Plate And Holding Fixture Removal

Courtesy of SUZUKI OF AMERICA CORP.

COMPONENT NAME REFERENCE

Callout	Component Name
1	J 46625 Transmission Holding Fixture Tip: Raise the transmission in order to remove the holding fixture. For equivalent regional tools, refer to SPECIAL TOOLS - AUTOMATIC TRANSMISSION - 6T70/6T75 .
2	DT-47811-A Lift Plate Tip: Lower the transmission assembly onto the transmission jack in order to remove the lift plate. For equivalent regional tools, refer to SPECIAL TOOLS - AUTOMATIC TRANSMISSION - 6T70/6T75 .
