Cornering Lamp Bulb Replacement

WARNING: This page is about a different car, the 2008 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

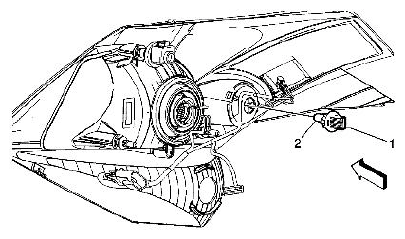

Fig 1: Identifying Park Auxiliary Bulb Socket And Park Auxiliary Bulb

Courtesy of SUZUKI OF AMERICA CORP.

COMPONENTS NAME REFERENCE

Callout	Component Name
Preliminary Procedure Remove the headlamp assembly. Refer to HEADLAMP REPLACEMENT .
1	Park Auxiliary Bulb Socket
2	Park Auxiliary Bulb
