Oil Pump Removal and Installation: Installation

WARNING: This page is about a different variant/trim than selected.

Install oil pump (1).
Tightening torque

Oil pump bolt (a): 23 N.m (2.3 kg-m, 17.0 lbf-ft)

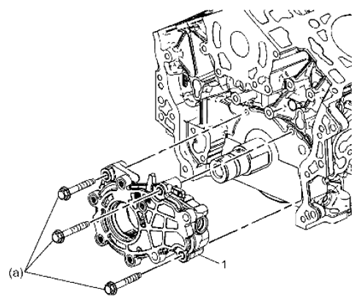

Fig 1: Identifying Oil Pump Bolts
Courtesy of SUZUKI OF AMERICA CORP.
Install 1st timing chain. See 1ST TIMING CHAIN AND TIMING CHAIN TENSIONER ADJUSTER NO. 2 REMOVAL AND INSTALLATION .
Install timing chain cover. See TIMING CHAIN COVER REMOVAL AND INSTALLATION .
Install generator bracket. See GENERATOR REMOVAL AND INSTALLATION .
Install OCV. OCV REMOVAL AND INSTALLATION .
Install P/S pump bracket. See P/S HOSE/PIPE COMPONENTS .
Install cylinder head cover. See CYLINDER HEAD COVER REMOVAL AND INSTALLATION .
Install accessory drive belt. See ACCESSORY DRIVE BELT REMOVAL AND INSTALLATION .
Install engine assembly from vehicle. See ENGINE ASSEMBLY REMOVAL AND INSTALLATION .
