P/S Hose/Pipe Components

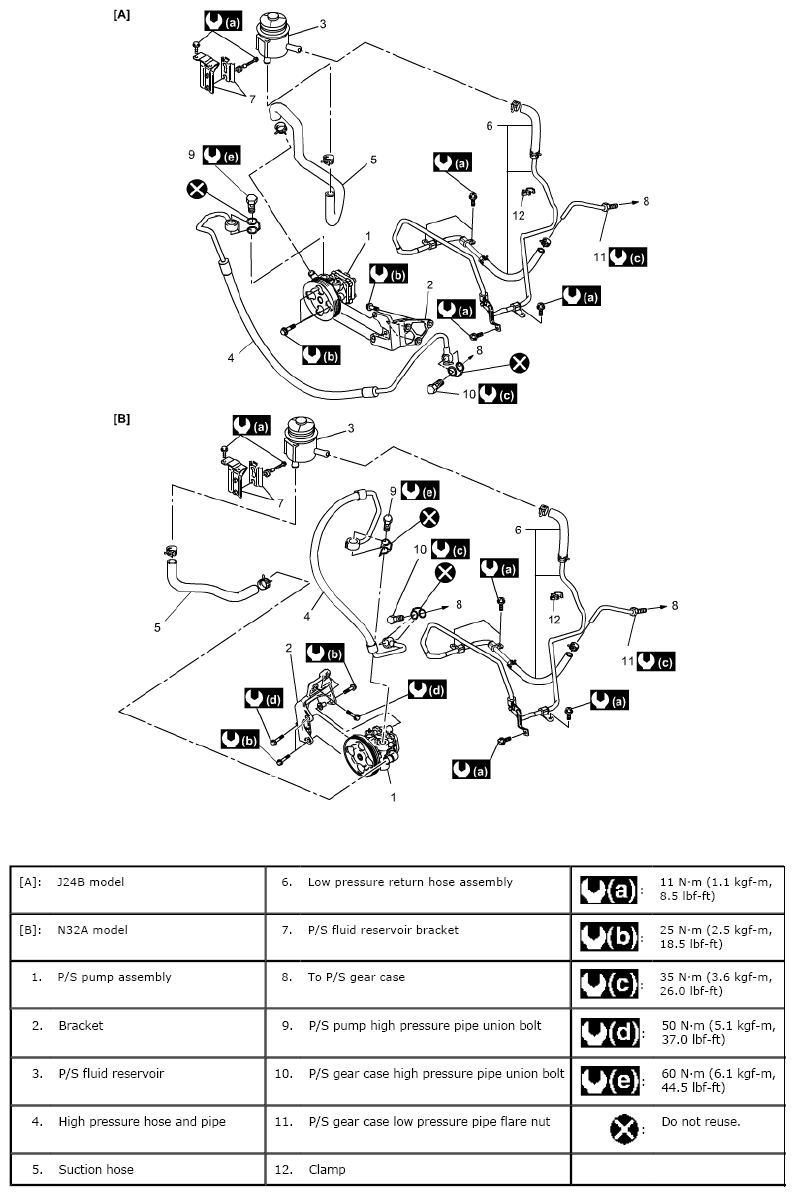

Fig 1: Identifying P/S Hose/Pipe Components
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
