Transmission Fluid Draining

Reference: HOLDING FIXTURE INSTALLATION

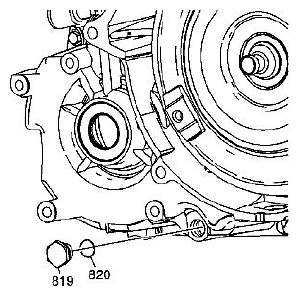

Fig 1: Identifying Gasket And Drain Plug

Courtesy of SUZUKI OF AMERICA CORP.

1. Place a suitable fluid collection pan under the transmission assembly.
2. Remove the drain plug.
3. Remove the gasket (820) from the drain plug (819).
4. Drain the automatic transmission fluid into the collection pan.
5. Remove the collection pan and properly dispose of the transmission fluid.
   Fig 2: Identifying Transmission Oil Level Indicator And O-Ring

   Courtesy of SUZUKI OF AMERICA CORP.
6. Remove the bolt (825) for the transmission level indicator.
7. Remove the transmission oil level indicator (823) and the O-ring (824).
