Holding Fixture Installation

Reference: TORQUE CONVERTER ASSEMBLY REMOVAL

Special Tool

DT-48355 Holding Fixture

J 3289-20 Holding Fixture

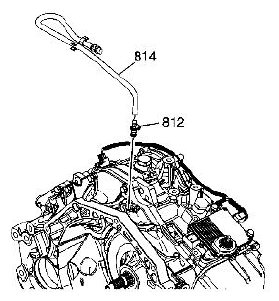

Fig 1: Identifying Vent Hose And Transmission Vent Pipe

Courtesy of SUZUKI OF AMERICA CORP.

1. Remove the vent hose (814).
2. Remove the transmission vent pipe (812).

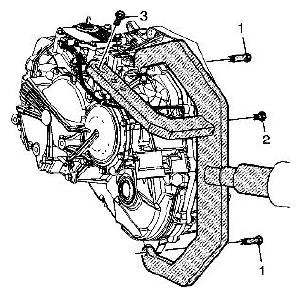

   Fig 2: Identifying Arm Bolt

   Courtesy of SUZUKI OF AMERICA CORP.
3. Install the body of the DT-48355 with the two long bolts (1) to the transaxle.
4. Loosely install the arm and bolt (2) to the DT-48355 body.
   CAUTION: Refer to FASTENER NOTICE .
5. Install the arm with the provided shorter bolt (3) to the transaxle.

   Tightening torque

   Tighten the DT-48355 to 25 N.m (18 lb ft) starting with bolt (3).

6. Install the DT-48355 in the J 3289-20.
