Transmission Cooler Line Seals Removal

Reference: OUTPUT GEAR ASSEMBLY REMOVAL

Special Tool

J 45201 Cooler Line Seal Remover

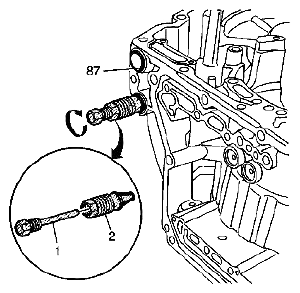

Fig 1: Tightening Forcing Screw

Courtesy of SUZUKI OF AMERICA CORP.

1. Insert the collet (2) of the J 45201 completely into the fluid cooler pipe fitting seal (87).
2. Insert the forcing screw (1) of the J 45201 into the collet (2).
3. Tighten the forcing screw (1) until snug.
   Fig 2: Identifying J 45201 Collar, Collet And Fluid Cooler Pipe Fitting Seal

   Courtesy of SUZUKI OF AMERICA CORP.
4. Thread the collar (1) of the J 45201 onto the collet (3) until snug.

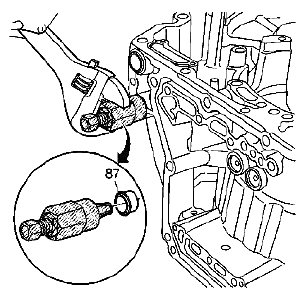

   Fig 3: Removing Fluid Cooler Pipe Fitting Seal

   Courtesy of SUZUKI OF AMERICA CORP.
5. Using an adjustable wrench, turn the collar clockwise in order to remove the fluid cooler pipe fitting seal (87).
6. Discard the fluid cooler pipe fitting seal.
7. Clean the case bores for the fluid cooler pipe fitting seals as needed.

   Reference: TRANSMISSION COOLER LINE SEALS INSTALLATION
