Transmission Cooler Line Seals Installation

Reference: TRANSMISSION COOLER LINE SEALS REMOVAL

Special Tool

J 41239-1A Cooler Line Seal Installer

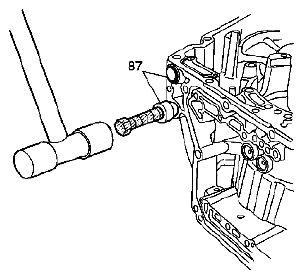

Fig 1: Installing Transmission Cooler Line Seal

Courtesy of SUZUKI OF AMERICA CORP.

Using J 41239-1A install 2 NEW fluid cooler pipe fitting seals (87) making sure that the seal lip is flush with the transmission case assembly.

Reference: OUTPUT GEAR ASSEMBLY INSTALLATION
