Removal Procedure

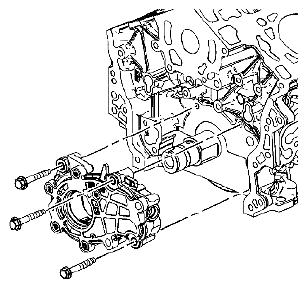

Fig 1: Identifying Oil Pump Bolts
G05469170Courtesy of SUZUKI OF AMERICA CORP.
NOTE: Do not remove the left bank idler sprocket.
  1. Remove the primary timing chain. Refer to PRIMARY CAMSHAFT DRIVE CHAIN AND SPROCKETS REPLACEMENT .
  2. Remove the oil pump bolts and the oil pump. Refer to OIL PUMP REMOVAL .
