Oil Pump Removal

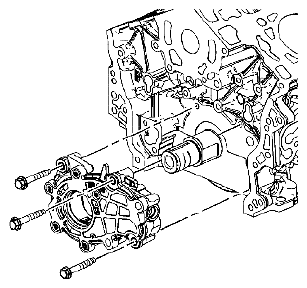

Fig 1: Identifying Oil Pump Bolts
G05469188Courtesy of SUZUKI OF AMERICA CORP.
  1. Remove the oil pump bolts.
  2. Remove the oil pump.

    Reference: OIL PUMP DISASSEMBLE
