Seat Belt Retractor Pretensioner Replacement - Front

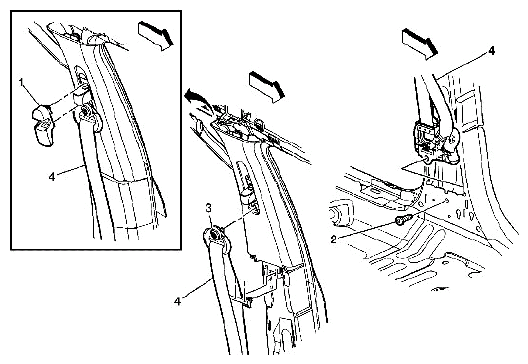

Fig 1: Identifying Seat Belt Retractor Pretensioner - Front

Courtesy of SUZUKI OF AMERICA CORP.

SEAT BELT RETRACTOR PRETENSIONER COMPONENTS REFERENCE

Callout	Component Name
WARNING: Refer to SIR INFLATOR MODULE HANDLING AND STORAGE CAUTION . Preliminary Procedures Disable the SIR system. Refer to SIR DISABLING AND ENABLING . Remove center pillar lower molding. Refer to CENTER PILLAR LOWER GARNISH MOLDING REPLACEMENT . Release seat belt from seat side anchor.
1	Seat Belt Retractor Pretensioner Adjuster Cover
2	Seat Belt Retractor Pretensioner Bolt CAUTION: Refer to FASTENER NOTICE . Tip: Apply GM P/N 12345382 (Canadian P/N 10953489), Permatex® 24200 or equivalent on all restraint fasteners prior to installation. Tightening torque 45 N.m (33 lb ft)
3	Seat Belt Retractor Pretensioner Adjuster Bolt Tightening torque 45 N.m (33 lb ft)
4	Seat Belt Retractor Pretensioner Assembly Procedure Disconnect the electrical connectors. Discharge and dispose of pretensioner assembly using the appropriate procedure. Refer to PRETENSIONER HANDLING AND SCRAPPING
