Center Pillar Lower Garnish Molding Replacement

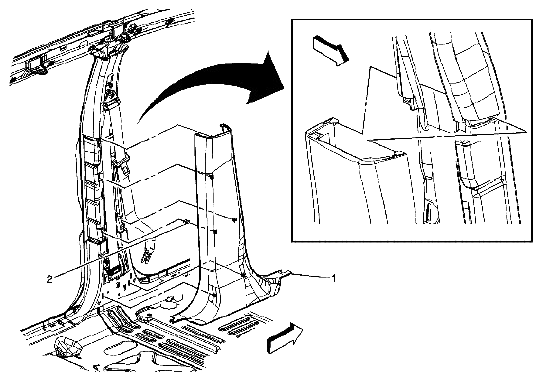

Fig 1: Identifying Center Pillar Lower Trim Panel And Center Pillar Lower Trim Panel Retainer

Courtesy of SUZUKI OF AMERICA CORP.

CENTER PILLAR LOWER GARNISH MOLDING COMPONENTS REFERENCE

Callout	Component Name
Fastener Tightening Specifications: Refer to FASTENER TIGHTENING SPECIFICATIONS - INTERIOR TRIM AND PANELING . Preliminary Procedure Remove the rear carpet retainer. Refer to REAR CARPET RETAINER REPLACEMENT . Lift up the rear of the front carpet retainer. Refer to FRONT CARPET RETAINER REPLACEMENT .
1	Center Pillar Lower Trim Panel Tip: Start at the top of the lower garnish molding, pull at the clip locations to disengage the clips.
2	Center Pillar Lower Trim Panel Retainer Clip (Qty: 5)
