Seat Belt Retractor Anchor Plate Replacement

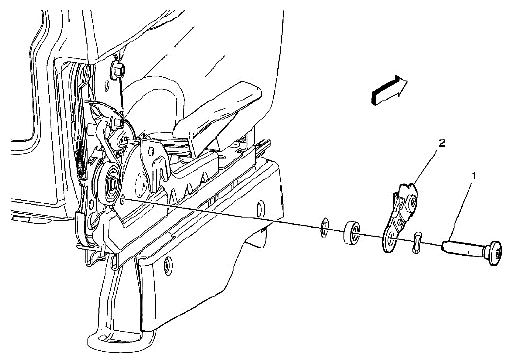

Fig 1: Identifying Seat Belt Retractor Anchor Plate Bolt

Courtesy of SUZUKI OF AMERICA CORP.

SEAT BELT RETRACTOR ANCHOR PLATE COMPONENTS REFERENCE

Callout	Component Name
Preliminary Procedure Remove the front seat cushion outer trim panel. Refer to FRONT SEAT CUSHION OUTER TRIM PANEL REPLACEMENT (NON FOLD FLAT) or FRONT SEAT CUSHION OUTER TRIM PANEL REPLACEMENT (FOLD FLAT) .
1	Seat Belt Retractor Anchor Plate Bolt (Qty: 1) CAUTION: Refer to FASTENER NOTICE . Tightening torque 50 N.m (37 lb ft)
2	Seat Belt Retractor Anchor Plate
