Seat Belt Height Adjuster Replacement - Front

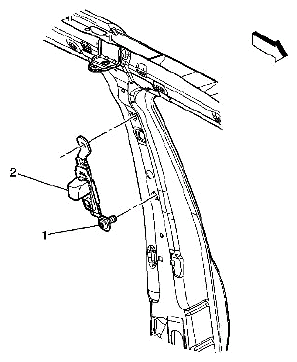

Fig 1: Identifying Front Seat Belt Height Adjuster Bolt

Courtesy of SUZUKI OF AMERICA CORP.

SEAT BELT HEIGHT ADJUSTER COMPONENTS REFERENCE

Callout	Component Name
Preliminary Procedure Remove the front seat belt adjuster cover. Remove seat belt guide loop bolt. Refer to SEAT BELT RETRACTOR PRETENSIONER REPLACEMENT - FRONT . Remove the center pillar upper garnish molding. Refer to CENTER PILLAR UPPER GARNISH MOLDING REPLACEMENT .
1	Front Seat Belt Height Adjuster Bolt (Qty: 2) CAUTION: Refer to FASTENER NOTICE . Tip: Apply Permatex® 24200 on all restraint fasteners prior to installation. Tightening torque 40 N.m (30 lb ft)
2	Front Seat Belt Height Adjuster Assembly
