Rear Seat Number 2 Belt Buckle Replacement

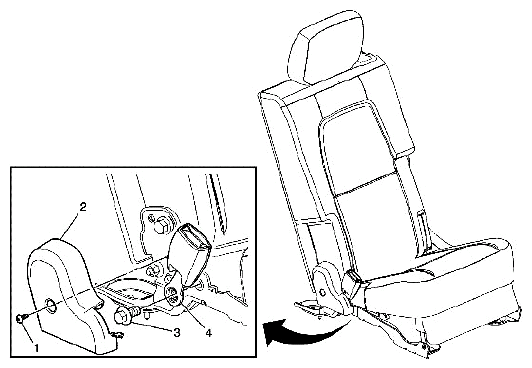

Fig 1: Identifying Rear Seat Number Belt Buckle

Courtesy of SUZUKI OF AMERICA CORP.

REAR SEAT NUMBER BELT BUCKLE COMPONENTS REFERENCE

Callout	Component Name
Preliminary Procedure Remove third row rear seats. Refer to REAR NUMBER 2 SEAT REPLACEMENT .
1	Seat Cushion Inner Finish Trim Panel Screw CAUTION: Refer to FASTENER NOTICE . Tightening torque 24 N.m (18 lb ft)
2	Seat Cushion Inner Finish Trim Panel
3	Seat Belt Buckle Bolt Tightening torque 45 N.m (33 lb ft)
4	Seat Belt Buckle Assembly
