Rear Number 2 Seat Replacement

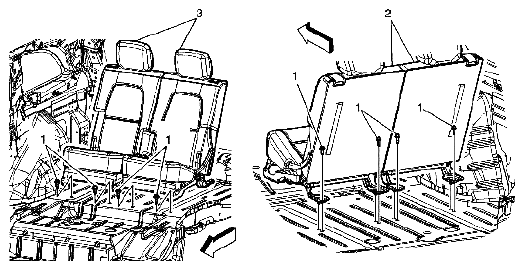

Fig 1: Identifying Rear Number 2 Seat Components

Courtesy of SUZUKI OF AMERICA CORP.

COMPONENT NAME CHART

Callout	Component Name
Preliminary Procedure Remove the rear seat number 2 cushion trim panel. Refer to REAR SEAT NUMBER 2 CUSHION TRIM PANEL REPLACEMENT . Remove the rear floor stowage compartment. Refer to REAR STORAGE COMPARTMENT REPLACEMENT .
1	Rear Seat No. 2 Bolt (Qty: 8) CAUTION: Refer to FASTENER NOTICE . Tip: Flip up the lower front finish cover to gain access to the front bolts. Tightening torque 45 N.m (33 lb ft)
2	Rear Seat No. 2 Assembly (Qty: 2) Each seat can be removed separately. Fold the seat down and remove through the rear of the vehicle.
