Removal Procedure

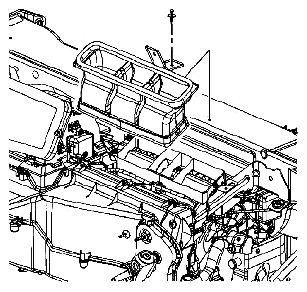

Fig 1: Identifying Windshield Defrost Duct
G05470581Courtesy of SUZUKI OF AMERICA CORP.
  1. Remove the instrument panel upper trim panel. Refer to INSTRUMENT PANEL UPPER TRIM PANEL REPLACEMENT .
  2. Remove the windshield defrost duct from the HVAC module.
