Inside Air Temperature Sensor Replacement

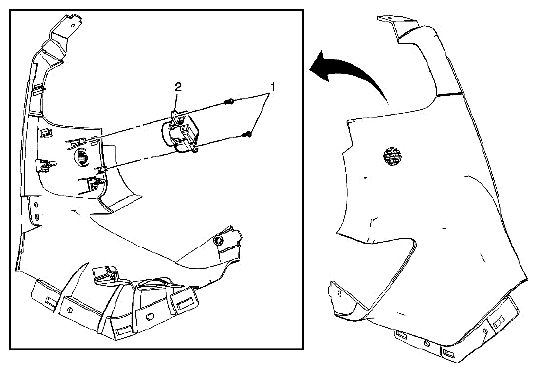

Fig 1: Identifying Inside Air Temperature Sensor Components
G05470640Courtesy of SUZUKI OF AMERICA CORP.
COMPONENT NAME CHART

Callout Component Name
Preliminary Procedure
Remove the left side I/P lower trim panel. Refer to INSTRUMENT PANEL LOWER TRIM PANEL REPLACEMENT - LEFT SIDE .
1 Inside Air Temperature Sensor Screw (Qty: 2)
CAUTION: Refer to FASTENER NOTICE .

Tightening torque
2 N.m (18 lb in)
2 Inside Air Temperature Sensor
Procedure
Disconnect electrical connector.
