Auxiliary Heater and Air Conditioning Control Replacement

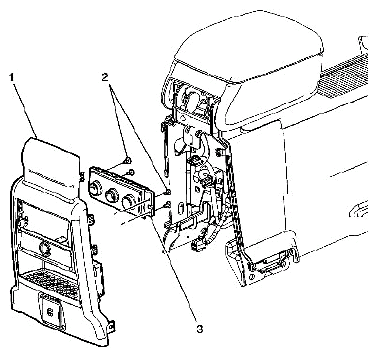

Fig 1: Identifying Auxiliary Heater And Air Conditioning Control

Courtesy of SUZUKI OF AMERICA CORP.

COMPONENT NAME CHART

Callout	Component Name
1	Rear Console Trim Plate Refer to CONSOLE REAR TRIM PLATE REPLACEMENT .
2	Auxiliary HVAC Control Module Screw (Qty: 4) CAUTION: Refer to FASTENER NOTICE . Tightening torque  1.5 N.m (13 lb in)
3	Auxiliary HVAC Control Module Tip:  Disconnect the electrical connectors.
