Removal Procedure

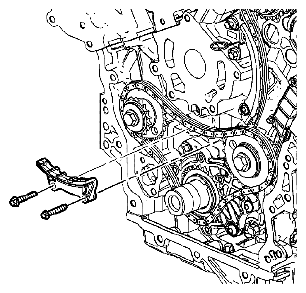

Fig 1: Identifying Primary Upper Camshaft Drive Chain Guide
G05465291Courtesy of SUZUKI OF AMERICA CORP.
  1. Remove the spark plugs in order to ease crankshaft/engine rotation. Refer to SPARK PLUG REPLACEMENT .
  2. Remove the engine front cover. Refer to ENGINE FRONT COVER REPLACEMENT .
  3. Remove the primary camshaft drive chain tensioner. Refer to PRIMARY CAMSHAFT DRIVE CHAIN TENSIONER REMOVAL (FOURTH DESIGN) .
  4. Remove the primary upper camshaft drive chain guide. Refer to PRIMARY CAMSHAFT DRIVE CHAIN GUIDE REMOVAL - UPPER (FOURTH DESIGN) .
