Primary Camshaft Drive Chain Guide Removal - Upper (Fourth Design)

Reference: PRIMARY CAMSHAFT DRIVE CHAIN TENSIONER REMOVAL (FOURTH DESIGN)

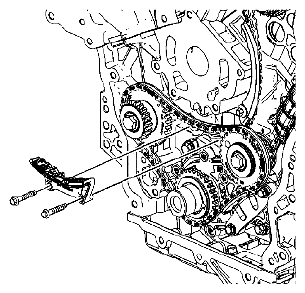

Fig 1: Identifying Primary Camshaft Drive Chain Upper Guide And Bolts

Courtesy of SUZUKI OF AMERICA CORP.

1. Remove the primary camshaft drive chain upper guide bolts.
2. Remove the primary camshaft drive chain upper guides.
