Installation Procedure

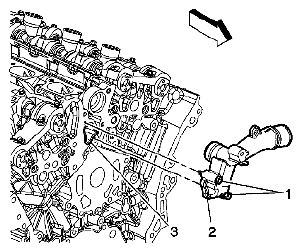

Fig 1: Identifying Water Outlet Housing Bolts

Courtesy of SUZUKI OF AMERICA CORP.

Install a NEW water outlet housing seal (3).
Install a NEW water outlet housing O-ring seal (2).
CAUTION: Refer to FASTENER NOTICE .
Install the water outlet housing bolts (1).
Tightening torque

Tighten the water outlet housing bolts to 10 N.m (89 lb in).
Install the radiator outlet hose. Refer to RADIATOR OUTLET HOSE REPLACEMENT .
