Radiator Outlet Hose Replacement

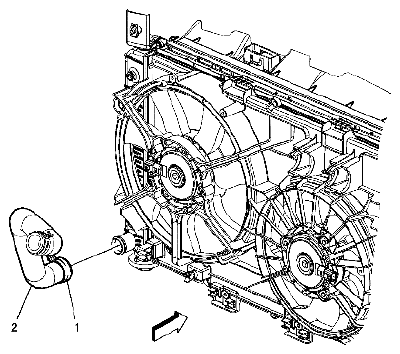

Fig 1: Identifying Radiator Outlet Hose
G05465580Courtesy of SUZUKI OF AMERICA CORP.
RADIATOR OUTLET HOSE REPLACEMENT PROCEDURE

Callout Component Name
Preliminary Procedure
  1. Drain the cooling system. Refer to COOLING SYSTEM DRAINING AND FILLING (LY7 GE 47716 FILL)  or COOLING SYSTEM DRAINING AND FILLING (LY7 STATIC FILL) .
  2. Raise and suitably support the vehicle. Refer to FASTENER NOTICE .
1 Radiator Outlet Hose Clamps
2 Radiator Outlet Hose
