Removal Procedure

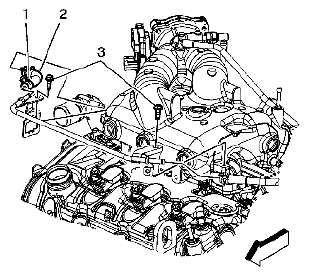

Fig 1: Identifying Coolant Air Bleed Pipe Assembly Bolts
G05465606Courtesy of SUZUKI OF AMERICA CORP.
  1. Remove the fuel injector sight shield. Refer to FUEL INJECTOR SIGHT SHIELD REPLACEMENT .
  2. Remove the surge tank inlet hose. Refer to RADIATOR SURGE TANK INLET HOSE/PIPE REPLACEMENT .
  3. Reposition the coolant air bleed hose clamp (1) at the coolant air bleed hose.
  4. Remove the coolant air bleed pipe from the coolant air bleed hose (2).
  5. Remove the coolant air bleed pipe bolts (3) from the upper intake manifold.
  6. Remove the coolant air bleed pipe from the engine.
