Radiator Surge Tank Inlet Hose/Pipe Replacement

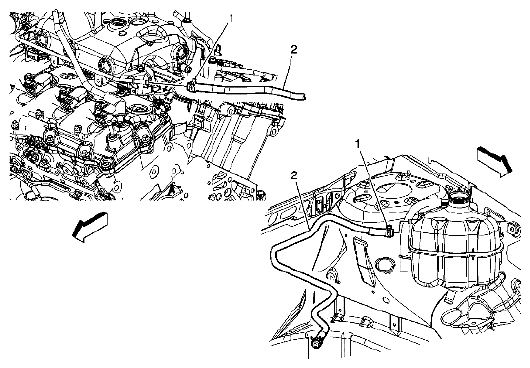

Fig 1: Identifying Radiator Surge Tank Inlet Hose Pipe

Courtesy of SUZUKI OF AMERICA CORP.

RADIATOR SURGE TANK INLET HOSE/PIPE REPLACEMENT PROCEDURE

Callout	Component Name
Preliminary Procedure Partially drain the cooling system. Refer to COOLING SYSTEM DRAINING AND FILLING (LY7 GE 47716 FILL) or COOLING SYSTEM DRAINING AND FILLING (LY7 STATIC FILL) .
1	Surge Tank Inlet Hose Clamps (Qty: 2)
2	Surge Tank Inlet Hose
